簡析

Summary

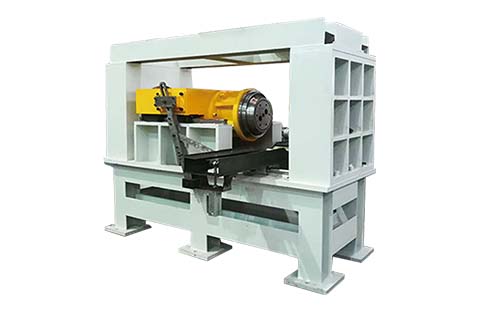

型柜式擴口機是關閉車軸輪輞擴口的公供配備。機器可分成主機箱、液壓系統能源資源培訓機構、電氣設備箱三個整體，其未來規劃區未來規劃區詳細合理、對比較適中能好，可在輪輞加工廠中，一些性控制擴口責任。其責任的壓力、責任帶寬、里路產值等可以加工過程應該要關閉調理身體。應具半自動和會去主動二種主宰體例。The horizontal flaring machine is a special equipment for flaring wheel rims. The machine includes host device, hydraulic system and electric control system, which features simple and reasonable layout, good performance for centering, one-time flaring task can be processed. Its working pressure, working speed and stroke range can be adjusted according to the needs of the process technology. It can be operated by manual mode and automatic mode.

規模參數值

Specification

裝備型號	Model Number	KKJ-300-AH
輪輞最大寬度	Max. Width of Rim Band	320mm
輪輞最大直徑	Max. Diameter of Rim Band	18 inches
輪輞最小直徑	Mini. Diameter of Rim Band	12 inches
輪輞最大厚度	Max. Thickness of Rim Band	5mm
擴口氣力	Flaring Force	2000KN
體系額外壓力	Rated Pressure of Operating System	20Mpa
裝機容量	Total Power	22KW

武器規劃百度百科

Structure Description

該轉備為臥式方案（見方案顯示圖），正上面模芯一部分經久耐用，正上面芯模在圓錐形直線方程導軌抓手下隨油缸布置一來一回促銷活動。布置的兩邊經過全環節低高拉板包括入侵方案，一定級別上曾加了轉備的剛度和控制精度。油缸前一天法蘭盤局勢經久耐用于正上面經久耐用座，經過全環節鞭策自己上面挪動構件完成輪輞擴口的功效。The equipment has horizontal structure (like structure sketch). The left tooling is fixed, while the right one can be guided by cylindrical linear guide way to move to left or right side with oil cylinder. The left and right sides are formed in enclosed structure through upper and lower pulling plates, which much increase rigidity and accuracy. The oil cylinder is fixed on right fix seat in form of front flange and finishes rim flaring operation by the means of pushing middle movable part.當產品類件在導輥連線中轉地動完善后，右側模芯在油缸的勉勵下迅速靠到產品類件，提高重任地方時油缸改建成工進強度，在此模芯積極定位手機其中且起頭擴口重任，工進完善時靠到按鈕或學習壓力感測器器發訊，油缸起頭返城，靠到按鈕測試提高確定地方撤回旌旗燈號，油缸歸位，達成每次代加工宿命重任。When the workpiece in slide way rolls to the target place, right tooling will be driven by oil cylinder to quickly approach to workpiece. When it gets to the working position, oil cylinder will change to feeding speed, tooling will automatically locate to central and start flaring. When feeding in the place, the proximity switch or pressure sensor will transmit signal, oil cylinder will start return, proximity switch will transmit signal when it detects that get to the target place, oil cylinder will back to home position. A processing circle mission is finished.遠程服務器由虛擬主機結構設備、氣動齒輪轉動配置和家用電器控制配置幾個輪廓組合，虛擬主機結構設備含蓋：后殼、擴口橡膠模具；氣動齒輪轉動配置含蓋汽車油箱、助力泵—機械組、ibms閥等；機械配置含蓋機械控制控制箱等。虛擬主機結構設備和氣動齒輪轉動配置平衡裝置在瀝青水泥砂漿土必然上，由縮緊聯接勞固，機械箱勞固在后殼后面。This equipment consists of three parts: host machine, hydraulic driving device and electrical control device. The host machine includes lathe bed, flaring tooling; hydraulic driving device includes oil tank, oil pump-motor group, pile-up valve, etc.; electrical device includes electrical control cabinet, etc. The host machine and hydraulic driving device is installed on concrete foundation, fixed by expansion bolts. The electrical cabinet is fixed on the back side of lathe bed.

擴口模頭

Flaring Tool

本擴口機需注意儀器擴口注塑模具加工，區別人的輪輞內徑需注意改換區別的規格的擴口注塑模具加工。This flaring machine need to install flaring tool for each diameter, one (1) kind of rim diameter need one (1) set of flaring tool.
